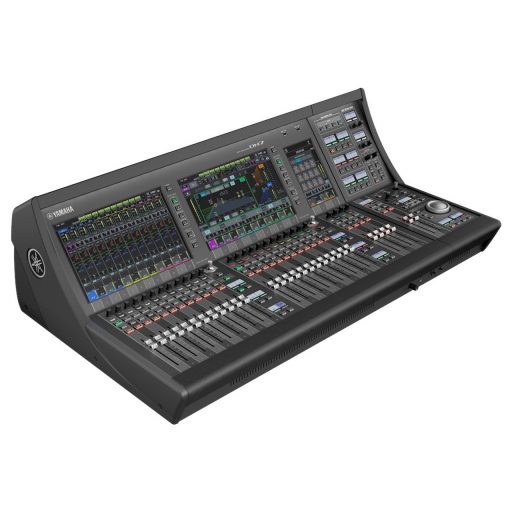

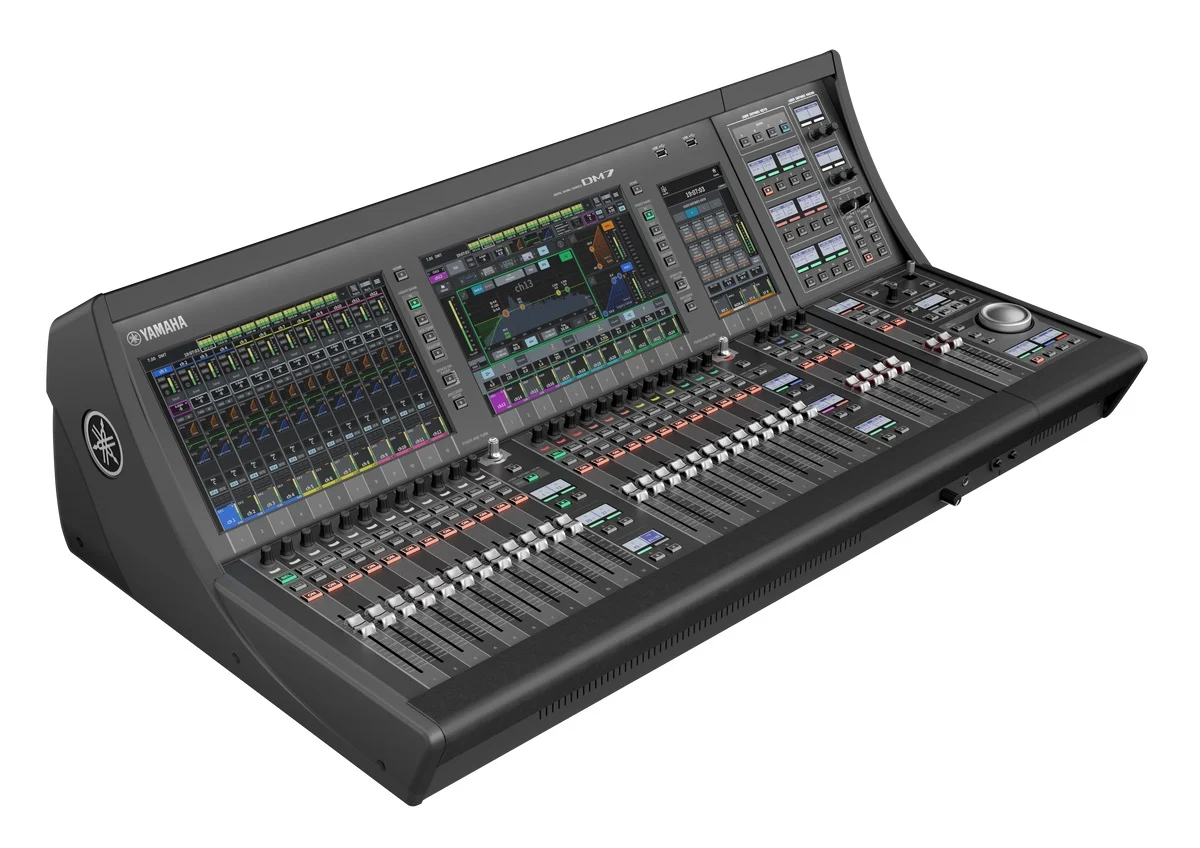

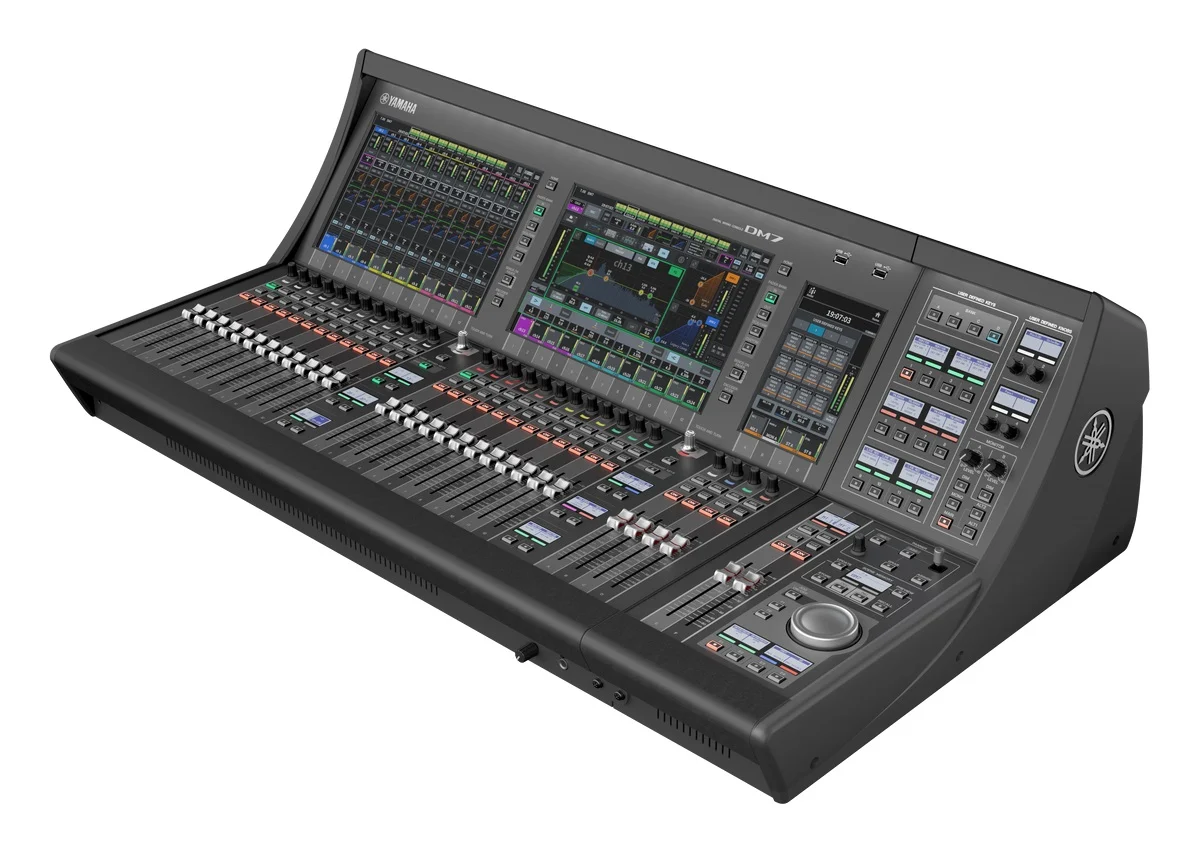

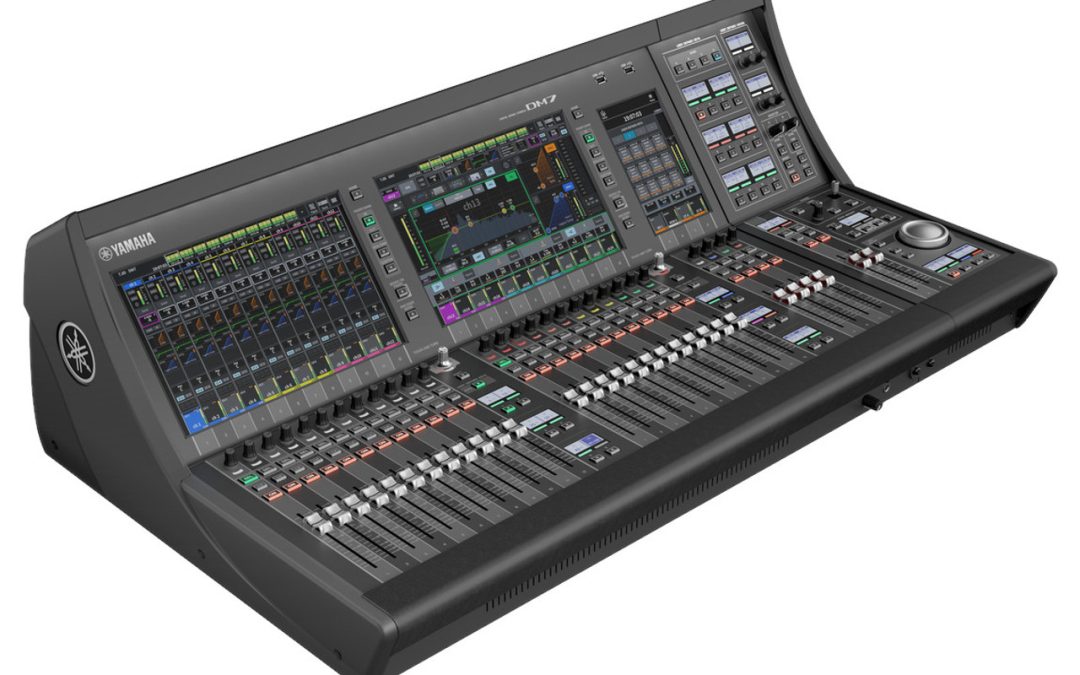

The Yamaha DM7-EX, a powerful digital mixing console, combines the capabilities of the DM7 120-channel Dante-enabled console with the CTL-DM7 expansion controller. This combination offers exceptional versatility and efficiency for various applications, including live sound, theater, broadcast, and corporate A/V.

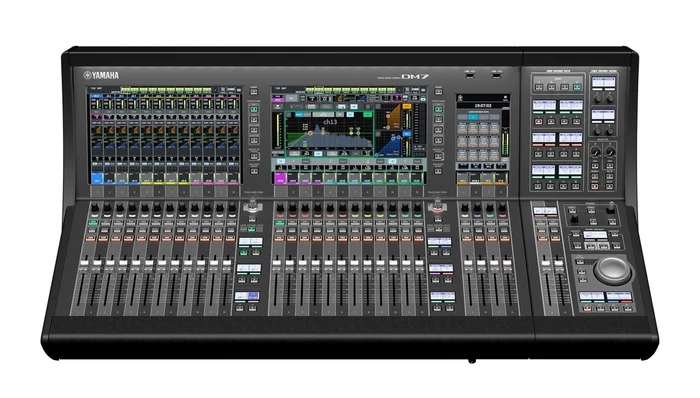

The DM7 boasts a dual-bay design with an intuitive user interface. It features two 12-inch touchscreens, a 7-inch touchscreen, 28 motorized faders, and touch-and-turn knobs for seamless navigation. The console delivers pristine 96kHz audio quality, supported by 32 premium mic preamps and 16 analog outputs. Additionally, it includes an 18 x 18 USB audio interface and 144 x 144 Dante connectivity, facilitating easy integration with your workflow.

The DM7 incorporates Yamaha’s renowned digital effects heritage, DAW remote capabilities, an internal dual power supply, and innovative AI assist functions for advanced control. The split mode enhances efficiency for complex applications, while the CTL-DM7 expansion provides hands-on operation with 48 user-defined knobs, a programmable jog wheel, assignable faders, and quick access to immersive, surround, and scene controls.

The DM7-EX stands out with its convenient DAW remote function, internal dual power supply, and AI assist functions. It offers a unique combination of advanced capabilities, making it an ideal choice for a diverse range of professional applications, including live sound, theatrical productions, broadcast environments, and corporate AV.

Includes

• DM7 Digital Mixing Console

• DM7 Control - Expansion Controller

• Owner's Manuals for DM7 and CTL-DM7

• AC Power Cord x3

• Dust Cover

• Steinberg Nuendo Live (DAW Software)

• Dante Virtual Soundcard Token Leaflet

• DEK-DM7-BR License ID Leaflet

• DEK-DM7-TH License ID Leaflet

Features

• Renowned Yamaha Sound with 96kHz sample rate

• Screens: 2 x High-Res Multi-touch 12” + 1 x High-Res 7”

• Faders: 12+ 12 + 4 + 2

• Mixable Channels: 120 inputs

• Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue

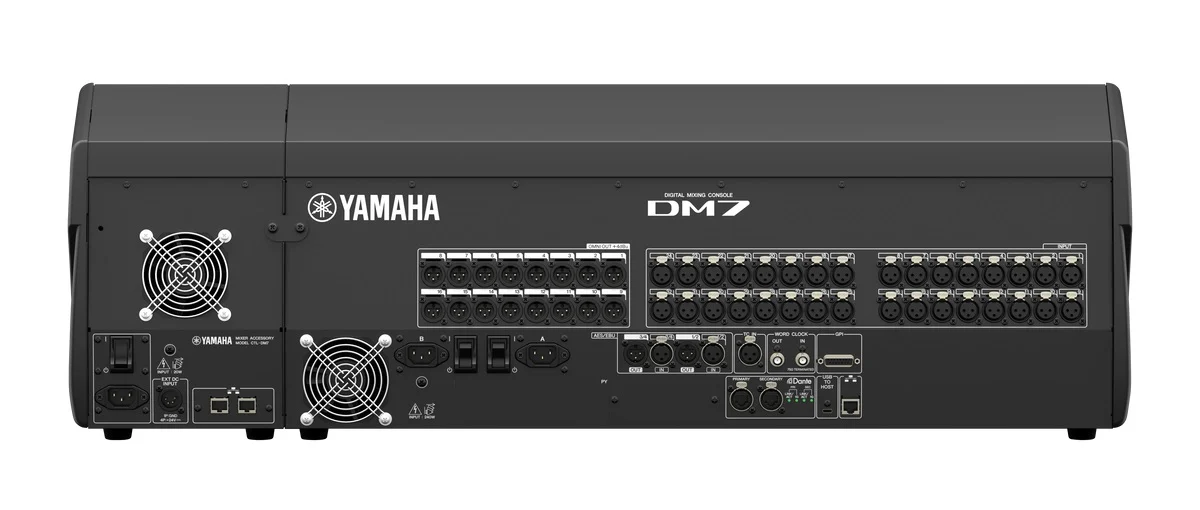

• Analog i/o: 32 x 16

• Digital: 2 x AES In/Out

• PY Slot i/o: 64x64 @96k

• Dante: 144 x 144@96k

• USB-C: 18x18 Audio Interface – Works with VST RACK

• Time Code In

• Internal Dual Power Supply

• DAW Remote Function

• Split mode

• First-of-its-kind AI Assist Functions

Specifications

• DM7

  • Mixing Capacity: 120 Inputs, 48 MIX + 12 Matrix + 2 Stereo

  • Sampling Frequency

    • External Clock Frequency: 48 kHz / 96 kHz ±200 ppm

    • Internal Clock Frequency: 48 kHz / 96 kHz

  • Signal Delay: Less than 1.5 ms, Input to Omni Out @Fs=96 kHz

    • Screen: 12.1" multi-touch screen × 2, 7" multi-touch screen × 1

    • Fader: 3.94" touch-sensitive motorized fader × 28

    • Power Requirements: 100-240 V, 50/60 Hz

    • Power Consumption: 240 W

    • Dimensions (W x H x D): 31.2" × 12.75" × 22.20"

    • Weight: 50.7 lbs

  • NC Value

    • Fan Speed LOW: NC=15

    • Fan Speed HIGH: NC=25

  • Operating Temperature Range: Min: 0°C, Max: 40°C

  • Storage Temperature Range: Min: −20°C, Max: 60°C

• Software:

  • DM7 Editor

  • DM7 StageMix

  • Console File Converter

  • MonitorMix

  • ProVisionaire Control/Touch

• CTL-DM7

  • Fader: 3.94" touch-sensitive motorized fader × 2

  • Power Requirements

    • AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type

    • EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1

    • Power Consumption: 20 W

  • Dimensions (W x H x D):

    • DM7 CONTROL: 7.52" × 12.72" × 22.12"

    • Linked with DM7: 38.3" × 12.75" × 22.2"

    • Linked with DM7 COMPACT 25.51" × 12.75" × 22.2"

  • Weight: 15.43 lbs

  • NC Value

  • Fan Speed LOW: NC=20

  • Fan Speed HIGH: NC=30

  • Operating Temperature Range: Min: 0°C, Max: 40°C

  • Storage Temperature Range: Min: −20°C, Max: 60°C
