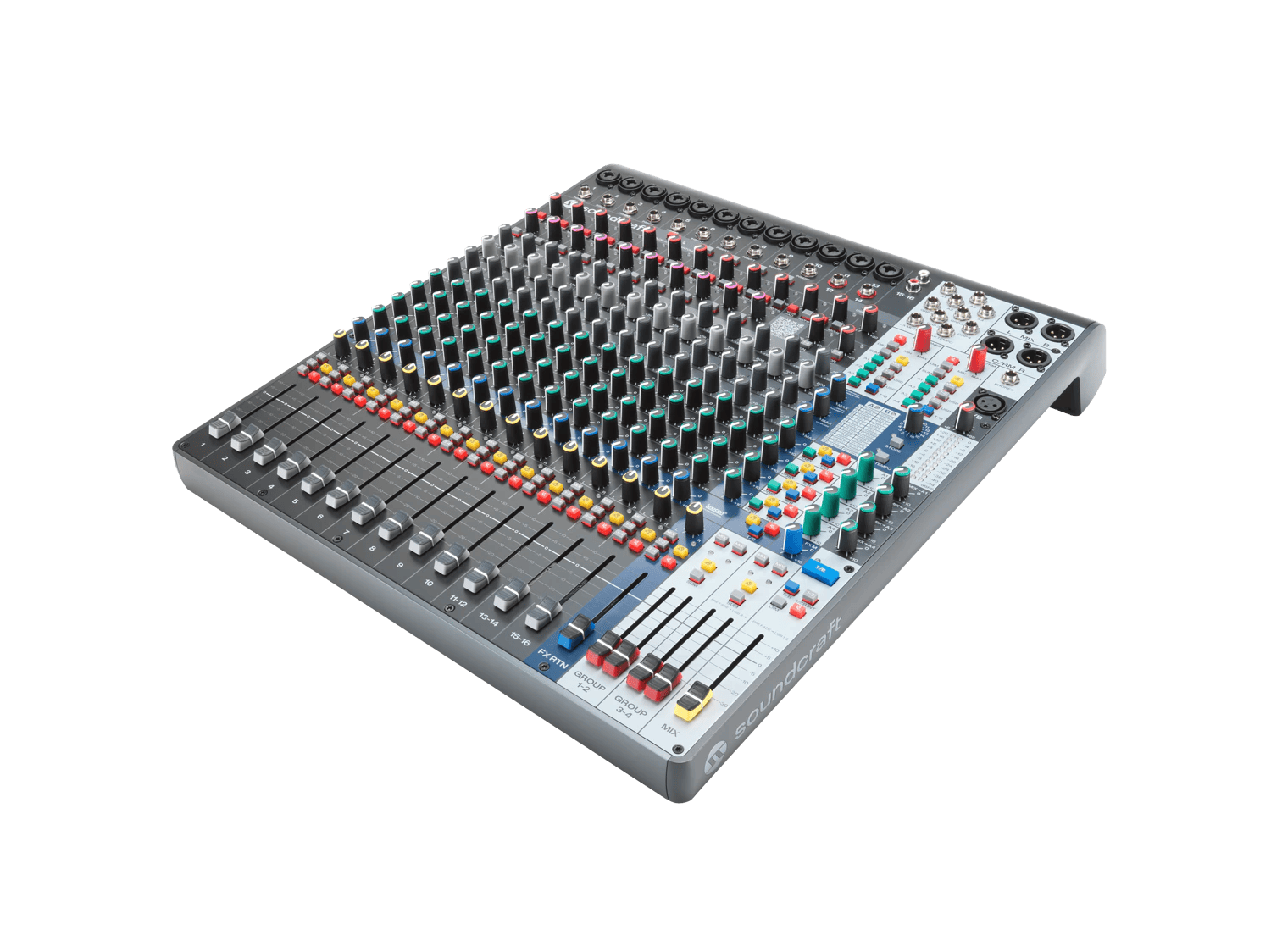

Soundcraft Signature Plus 16 Analog Mixer with Lexicon Effects and USB-C

Professional Soundcraft Mixing with Modern USB-C Integration

The Soundcraft Signature Plus 16 combines the hands-on workflow of a professional analog mixer with premium Soundcraft preamps, musical EQ, built-in Lexicon effects, dbx compression, and high-resolution USB-C connectivity.

Designed for live performers, venues, houses of worship, recording engineers, podcasters, content creators, and production professionals, the Signature Plus 16 delivers a flexible 16-channel mixing platform with the sound quality and intuitive operation Soundcraft consoles are known for.

With Ghost microphone preamps, Sapphyre EQ, dbx 1-knob compressors, Lexicon digital effects, four aux sends, four groups, and a 24-bit/192kHz 4-in/4-out USB-C audio interface, the Signature Plus 16 is built to handle both traditional live mixing and modern hybrid recording workflows.

Soundcraft Ghost Microphone Preamps

At the heart of the Signature Plus 16 are Soundcraft's acclaimed Ghost microphone preamps.

Derived from Soundcraft's professional console heritage, these preamps are designed to provide:

• High headroom
• Wide dynamic range
• Low noise
• Excellent detail
• Clean transient response
• Professional signal integrity

Whether you're mixing vocals, acoustic instruments, drum microphones, wireless systems, or other live sources, the Ghost preamps provide a clean and reliable foundation for your mix.

Musical Sapphyre 3-Band EQ

Each primary input channel features Soundcraft's Sapphyre EQ, giving engineers fast and musical control over the tonal balance of each source.

The 3-band EQ includes a sweepable midrange, allowing you to target problem frequencies or shape vocals and instruments with greater precision than a basic fixed EQ.

Use it to:

• Add presence to vocals
• Remove boxiness from instruments
• Control harsh frequencies
• Tighten low-end response
• Improve clarity in dense mixes
• Shape sources quickly during live performances

The Sapphyre EQ is designed to make useful adjustments quickly without overcomplicating the workflow.

Built-in dbx 1-Knob Compression

Selected input channels include dbx 1-knob compressors with harmonic enhancement, providing straightforward dynamics control without requiring complicated compressor settings.

Simply turn the control to increase compression as needed.

This makes it easy to tame:

• Dynamic vocalists
• Bass guitars
• Acoustic instruments
• Percussion
• Speech microphones
• Other unpredictable sources

For fast-moving live environments, the one-knob design gives engineers useful dynamic control without interrupting the flow of the mix.

Premium Lexicon Digital Effects

The Signature Plus 16 includes a dedicated Lexicon hardware effects processor, giving you professional ambience and time-based effects directly from the console.

Lexicon has a long history in professional digital reverb and effects processing, and the integrated processor allows you to add polished effects without requiring additional rack equipment or software.

The updated effects section includes:

• Multiple digital effects
• Preset Store
• Tap Tempo
• Dedicated effects control
• Fast recall for live use

Whether you're adding vocal reverb, creating delay effects, or adding ambience to instruments, the onboard Lexicon processor gives you immediate access to professional effects directly from the mixer.

24-bit/192kHz 4x4 USB-C Audio Interface

The Signature Plus 16 is more than a traditional analog mixer.

Its built-in 4-input/4-output USB-C audio interface supports resolutions up to 24-bit/192kHz, allowing the mixer to integrate directly with compatible computers and mobile devices.

This opens up a wide range of applications, including:

• Recording performances
• Playback from a computer
• Podcast production
• Livestreaming
• Content creation
• Hybrid live/recording workflows
• Virtual instruments and software playback
• DAW integration

The USB-C connection gives modern production setups a simple way to combine analog mixing with computer-based audio.

Flexible Aux and Monitor Routing

With four aux sends, the Signature Plus 16 provides the flexibility needed to build multiple monitor mixes and route signals to additional equipment.

This makes it well suited for:

• Stage monitor mixes
• In-ear monitor systems
• External effects
• Recording feeds
• Livestream mixes
• Zone outputs

Soundcraft's Mix to Aux workflow simplifies monitor setup and adjustment, helping engineers build and manage multiple mixes efficiently.

Four Groups for Advanced Mixing

The Signature Plus 16 provides four group outputs, allowing several channels to be controlled together.

Groups are especially useful for organizing larger mixes, such as:

• Drum groups
• Vocal groups
• Instrument groups
• Playback channels
• Choirs
• Wireless microphone groups

This gives engineers more control over complex mixes while maintaining the familiar hands-on workflow of an analog console.

Pro Listen Monitoring

The built-in Pro Listen bus allows engineers to monitor selected signals without interrupting the main mix being sent to the audience or performers.

This makes it easier to troubleshoot channels, check signal quality, and monitor individual sources while the show continues uninterrupted.

Additional monitoring controls include:

• Headphone output
• Control room outputs
• Mute
• Dim
• Mono Sum
• Direct USB routing

These features give the engineer greater control over how and where signals are monitored.

Talkback Routing

The Signature Plus 16 includes a dedicated XLR talkback input with flexible routing.

Talkback can be sent to selected outputs, making communication easier between the engineer and performers during rehearsals, soundchecks, recording sessions, and live events.

Channel Inserts for External Processing

Channels 1–10 include insert capability, allowing external processors to be integrated directly into the signal path.

Use the inserts with equipment such as:

• Compressors
• Gates
• EQs
• Channel strips
• Specialty processors

This provides additional flexibility for users who want to incorporate external analog processing into their system.

Designed for Fast, Intuitive Operation

The Signature Plus series maintains the physical workflow that makes analog mixers so popular.

The console features:

• Color-coded controls
• Tactile knobs
• Smooth professional faders
• Clear channel layouts
• Simple visual metering
• Easy-access routing controls

Soundcraft's SSM (Simple Success Metering) provides clear visual feedback, helping engineers quickly determine signal status while mixing.

A top-panel QR code also provides convenient access to training materials, manuals, and support resources.

Rackmountable for Professional Installations

The Signature Plus 16 includes a set of rack ears, making it suitable for installation into compatible equipment racks and road cases.

This makes it an excellent choice for:

• Touring systems
• Mobile production rigs
• Houses of worship
• Schools
• Theaters
• Corporate AV systems
• Clubs and venues
• Recording setups

Soundcraft Signature Plus 16 Features

• 16-channel professional analog mixer
• Soundcraft Ghost microphone preamps
• Sapphyre 3-band EQ
• Sweepable midrange EQ
• dbx 1-knob compressors with harmonic enhancement
• Built-in Lexicon digital effects processor
• Lexicon preset Store function
• Tap Tempo control
• 24-bit/192kHz USB audio
• 4-input/4-output USB-C interface
• USB integration with compatible computers and mobile devices
• Four aux sends
• Four mix groups
• Mix to Aux workflow
• Pro Listen monitoring bus
• Talkback routing
• Headphone and control room monitoring
• Mute, Dim, and Mono Sum monitoring controls
• Direct USB routing
• Channel insert points
• TRS insert connectivity
• Simple Success Metering
• Smooth professional-quality faders
• Intuitive color-coded layout
• Tactile control knobs
• Top-panel QR code for support and training
• Included software bundle
• Rackmountable design
• Rack ears included

Technical Specifications

Type: Analog Mixer
Channels: 16
Mic Preamps: 10 x XLR/TRS combo inputs
Phantom Power: Yes, global
Line Inputs: 12 x XLR/TRS combo, 2 x 1/4-inch, 1 x stereo RCA pair
Additional Inputs: 2 x 1/4-inch for Tap Tempo / FX Mute
Main Outputs: 2 x XLR
Control Room Outputs: 2 x XLR
Group Outputs: 4 x 1/4-inch
Aux Sends: 4 x 1/4-inch
Channel Inserts: 6 x 1/4-inch
Groups: 4
Insert-equipped Channels: Channels 1–10
Talkback Input: 1 x XLR
USB: 1 x USB-C
USB Audio: 4-in / 4-out
A/D Resolution: 24-bit / 192kHz
Faders: 19
EQ: 3-band with sweepable mid
Effects: Built-in Lexicon digital effects
Dynamics Processing: dbx compression
Rackmountable: Yes
Power: Standard IEC AC cable
Manufacturer Part Number: SCR-SIGPLUS16-US

Analog Workflow with Modern Recording Flexibility

The Soundcraft Signature Plus 16 is a powerful choice for users who want the speed and familiarity of analog mixing without giving up modern recording, streaming, and computer integration.

With professional Ghost preamps, musical Sapphyre EQ, dbx compression, Lexicon effects, flexible routing, and a high-resolution 4x4 USB-C interface, it delivers a versatile solution for live sound, recording, podcasting, worship, and content production.

Available from Metro Sound & Lighting.
