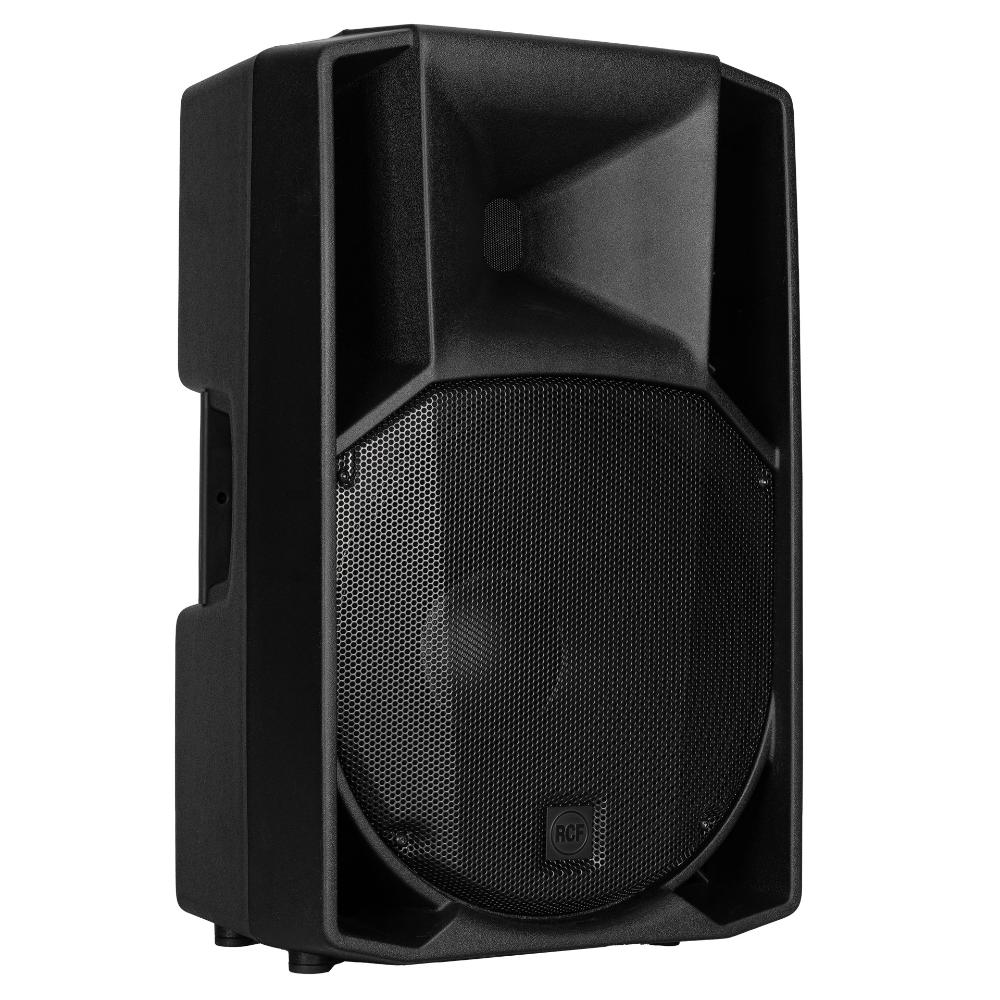

RCF ART 745-A MK5 1,400-watt 2-way 15-inch Powered Speaker

$1,299.00

-

1,400W 2-way Active Speaker with 15″ Woofer, 4″ Neodymium Compression Driver, FiRPHASE Technology, Kapton Diaphragms, XBoost Low-frequency Enhancer, and Onboard DSP

1 in stock

Free Shipping

100% Secure Payment Checkout

FEATURES
  • 133 dB Max SPL
  • 1400 WATT 2-way peak power
  • 90° x 60°, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 4" Compression Neodymium Driver with Titanium diaphragm
  • 15" Neodymium Woofer
  • FiRPHASE Technology
  • XBOOST Low Frequencies Enhancer

The ART 745-A MK5 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protection

Powerful Class D Amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Legendary Transducers
Superior Compression Drivers
The ND940 Compression Driver in pure Titanium with a 4 inches voice coil allows a crossover point at only 650 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
Potent Woofer
The low-frequency transducer is a high-power 15’’ neodymium woofer with a 3.5’’ voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
133 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
TRANSDUCERS
Compression Driver
1 x 1.4'' neo, 4.0'' v.c
Woofer
1 x 15'' neo, 3.5'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
PROCESSOR SECTION
Crossover Frequencies
650
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
POWER SECTION
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material
PP Composite
Hardware
2 x M10
Handles
1 on top, 1 each side
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
SIZE / WEIGHT
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Weight
18.8 kg / 41.45 lbs
