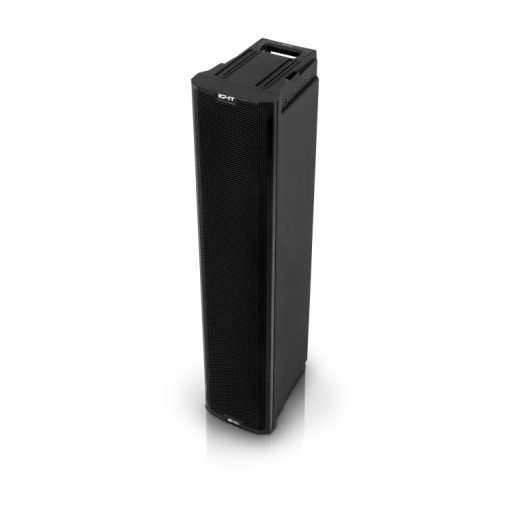

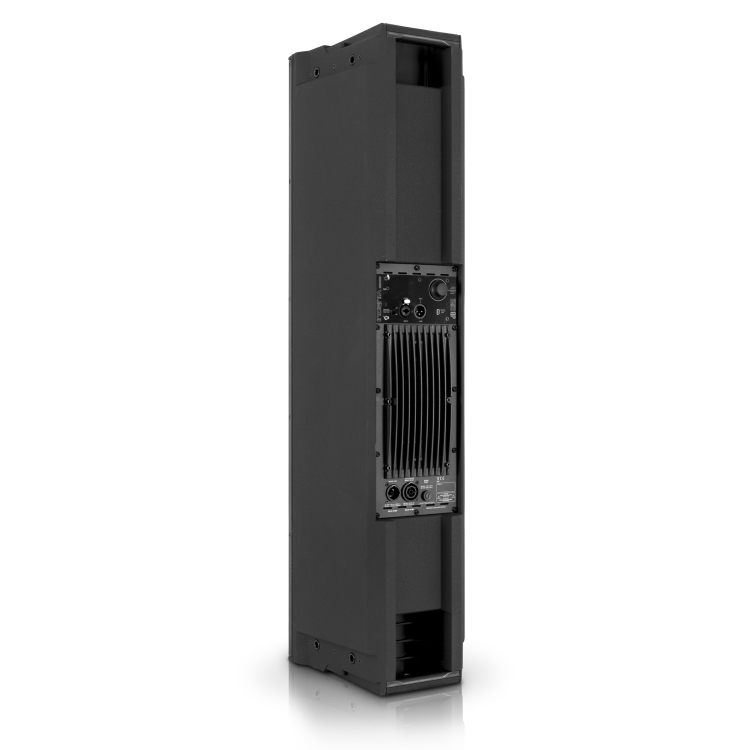

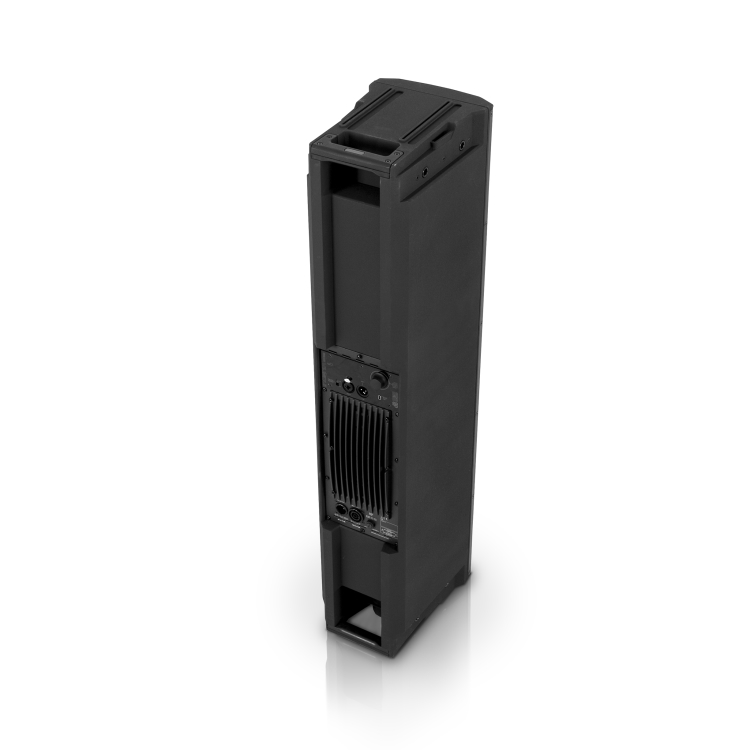

dBTechnologies Ingenia IG4T 1,800-watt 2-way Active Speaker
$2,425.00
-
1,800W 2-way Active Speaker with 4 x 6.5″ Woofers, 1.4″ Tweeter, OLED Screen, Mic HPF, and Notch Filter
1 in stock
Free Shipping
100% Secure Payment Checkout
INGENIA series embodies a longtime experience in acoustics, mechanics, power electronics and DSP programming, combined with talent and intuition in order to create an unprecedented active speaker: compact, modular, flyable, user-friendly and incredibly smart.
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
74- 20.000 Hz
Frequency Response [-6dB]
88 - 19.200 Hz
Max SPL
132 dB
HF
1.4"
HF Voice Coil
3"
Directivity (HxV)
110 x 90° (+20°/- 70°)
HF Type
Neodymium compression driver
Horn
Vertical asymmetric
Crossover Frequency
1100 Hz
LF
4x6.5”
LF Voice Coil
1.5"
LF Type
Neodymium
Amplifier
Amp Technology
Digipro® G3
Amp Class
Class-D
Peak Power
1800 W
RMS Power
900 W
User Interface
OLED display + rotative knob w/switch
Self-rotating display
Yes
Positioning
EPD (Element Position Detection)
Display Mirroring
Yes
Processor
Controller
DSP 56 bit
AD/DA Converter
24bit/48kHz
System Presets
Factory presets + User defined
Limiter
Dual Active Peak, RMS, Thermal
DSP Processing
FIR Linear Phase
Input
Signal Input
1 x Combo IN (XLR + Jack 6.3mm)
Signal Out
1 x XLR link OUT
USB connector
Yes - mini USB
Mechanics
Housing
Polypropylene PP reinforced
Grille
FULL /Invisible screws
Flyable
Yes
Handles
1x on top / 1x on bottom
Pole Mount
Yes
Width
195 mm (7.68 in)
Height
956 mm (37.64 in)
Depth
271 mm (10.67 in)
Weight
18.2 Kg (40 lbs.)
