ChamSys Magic DMX Full

The MagicDMX Full USB to DMX Interface provides a complete universe of DMX control with RDM support and no time restrictions. It can function as either an Output or an Input, allowing for DMX monitoring. Users can remotely set DMX addresses, configure fixture modes, and auto-patch RDM-compliant fixtures directly to MagicQ for seamless operation.

Note MagicDMX does not unlock ‘demo mode’ features.  Gender reversing adapters for input not included.

ChamSys Magic DMX Full Features

• One Universe DMX output
• 5 pin female XLR
• USB-C connector
• Basic electrical protection
• LED status indicator

ChamSys Magic DMX Full Specifications

• Hardware Specification:
  • DMX Port(s): 1
  • RDM Support: Yes
  • USB Port(s): 1 (USB-C)
  • Unlocks ‘demo mode features: No
  • Time Restriction: No
• Software Specifications:
  • Universes: 64
  • Channels: 32,768
  • Number of fixtures: upto 32,768
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Media server support: 50 (each different content)
• Weights and Dimensions:
  • Width:135mm (5.3”)
  • Depth: 93mm (3.6”)
  • Height: 38mm (1.4”)

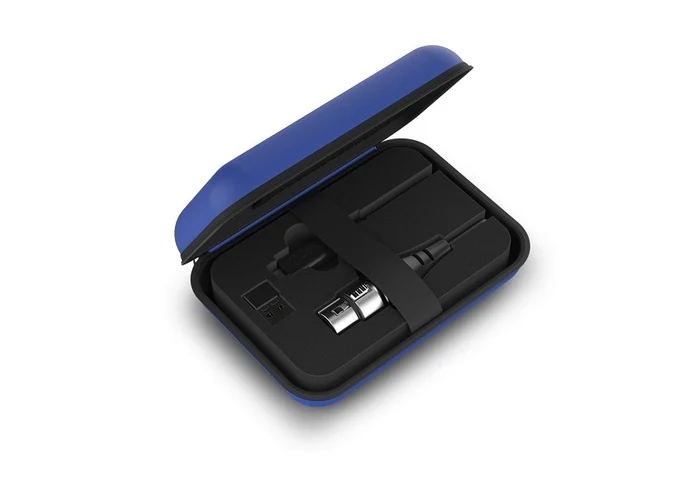

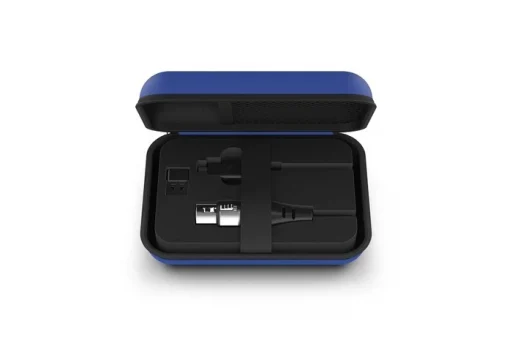

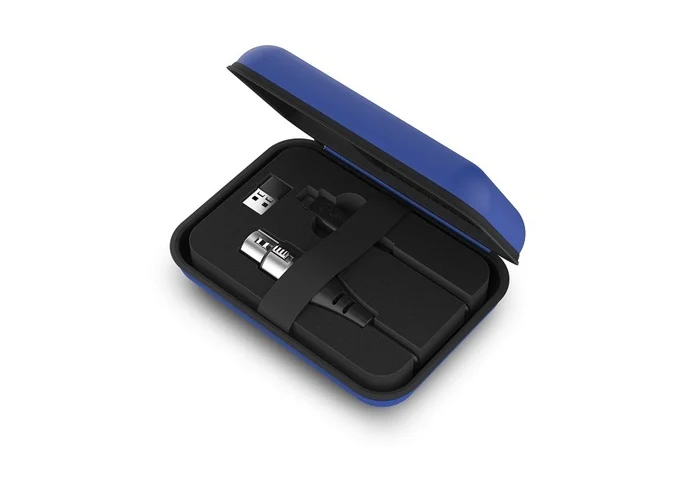

  • Weight (MagicDMX Inside case): 0.1kg (0.22lbs)
