PreSonus Quantum HD 2 USB-C Audio Interface

$399.99

-

20-in/24-out, 32-bit/192kHz Audio Interface with 22-ch ADAT Optical I/O, Stereo S/PDIF I/O, 2 Re-amp Out, 2 Instrument In, 2 Mic/Line In, 4 x 1/4″ TRS Audio Out, USB-C Port, Loopback – macOS/Windows/iOS/iPadOS/Android

1 in stock

Free Shipping

100% Secure Payment Checkout

Power your project with the Quantum HD 2 – the recording interface for project studios and full band recordings.

The culmination of 30 years of innovation, the Quantum HD 2 features two newly redesigned high-definition MAX-HD mic preamps with +75 dB of gain – making it ideally suited for today’s most popular microphones. Guitarists and bassists will love the two instrument inputs, which were co-developed with Fender engineers. An Auto Gain button sets the perfect gain level for your microphones and instruments. You also get two re-amp outputs so you can send audio from your DAW to your guitar or bass amp and re-record it to experiment with different amps, pedals, and mic placements. An illuminated push encoder provides flexible control over gain level and output volume, making it great for self-produced recording.

Overview

Features

  • High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
  • All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
  • Co-Developed with Fender® – Front-facing instrument inputs engineered for guitarists by industry-leading experts.
  • Professional Recording Software Included Fender Studio Pro License

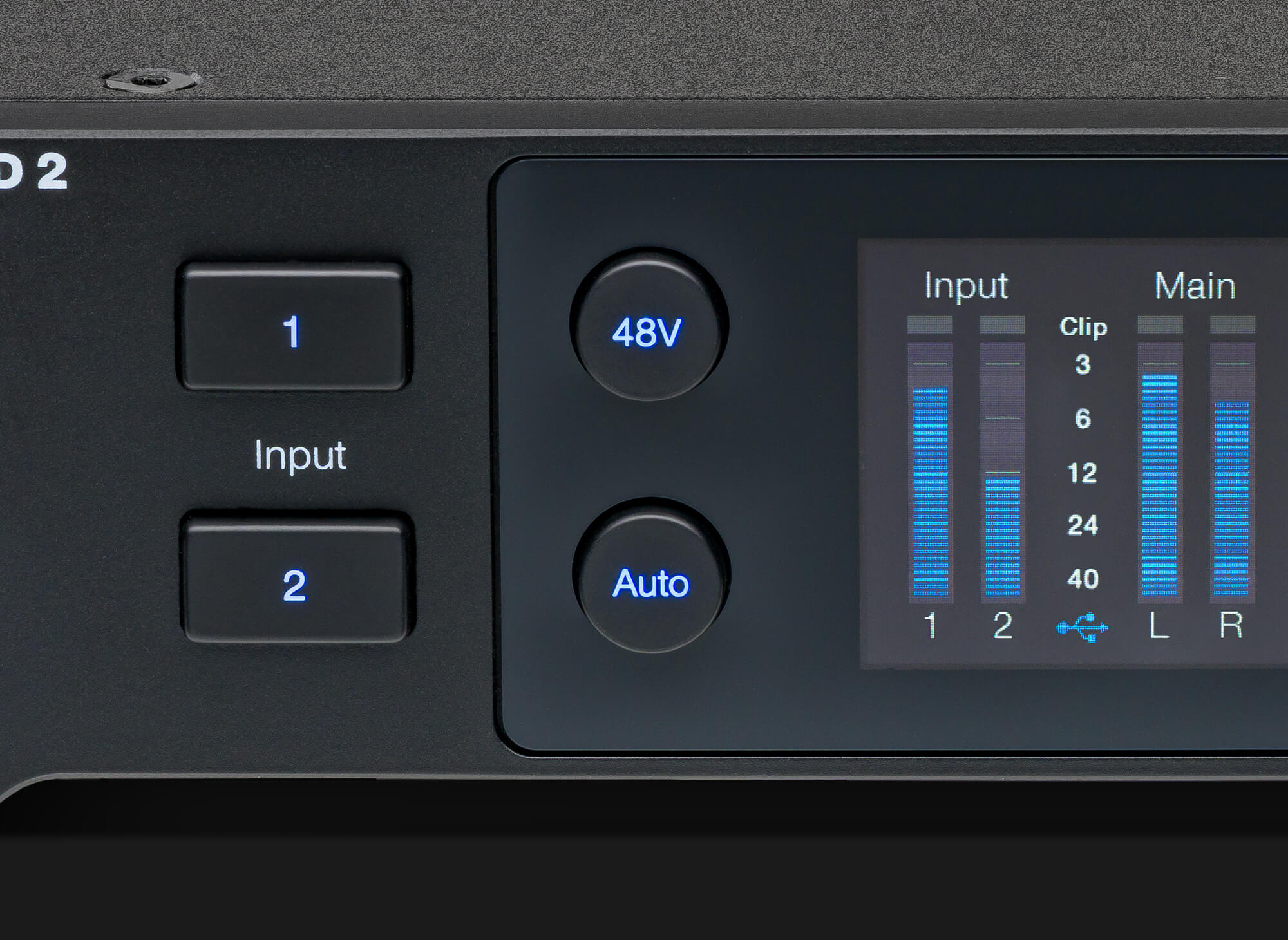

  • Auto Gain – Dial in recording-ready levels, hassle-free.
  • Re-Amp Outputs – Re-amp audio directly from your DAW and experiment with amps and effects to sculpt your sounds.
  • Universal Control App – Full control and metering from your mobile device, desktop, or tablet.





Specs

General

Product Name

Quantum HD 2 USB-C Audio Interface

Series

Quantum

Color

Black

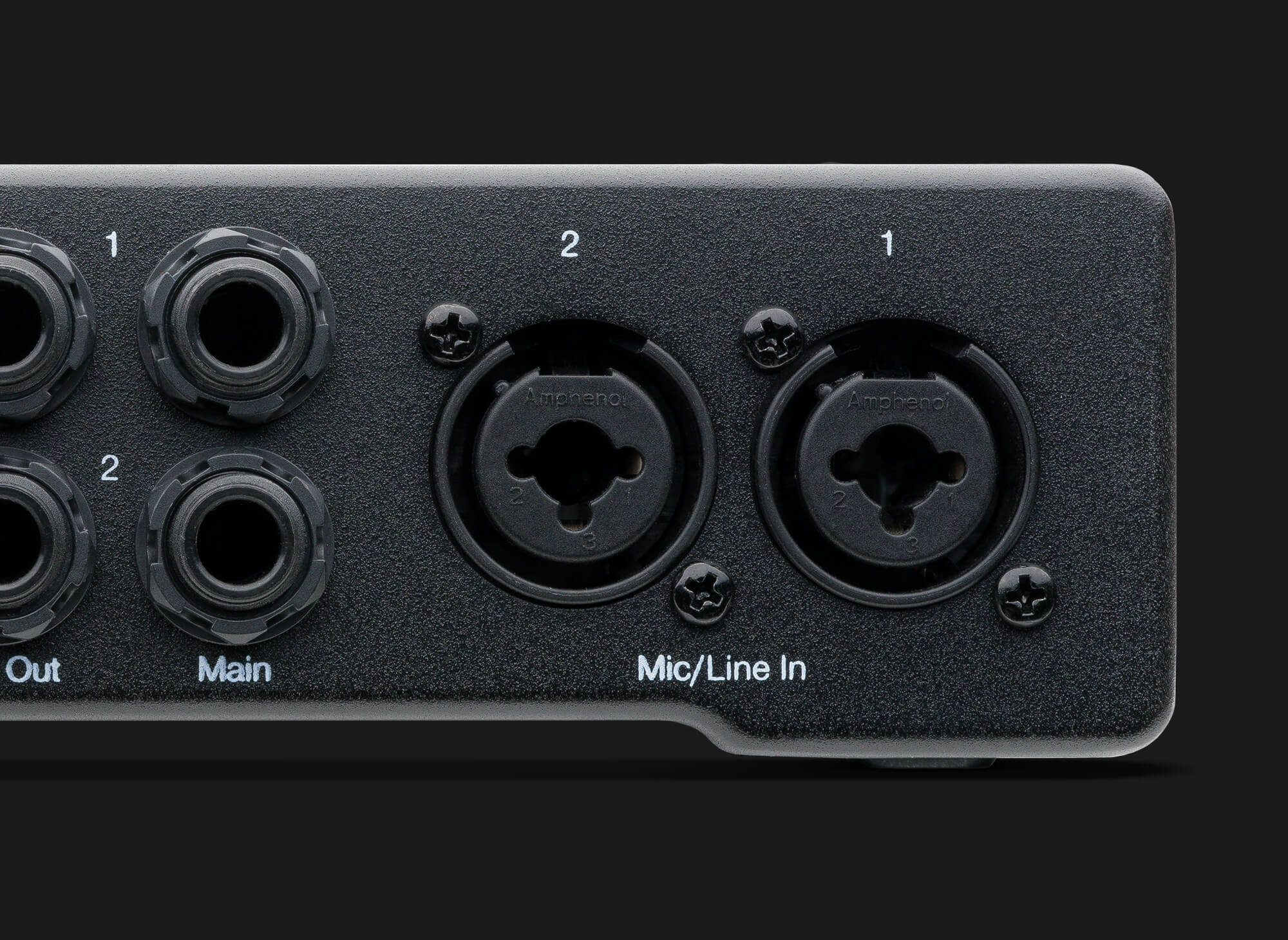

Microphone Inputs

Connection Type

XLR Female (Combo), Balanced

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

1600 Ohms

Dynamic Range

116 dB (A-Weighted, Minimum Gain)

EIN

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

THD+N

0.002% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Phantom Power

+48 VDC

Line Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Input Impedance

10K Ohms

Dynamic Range

118 dB (A-Weighted, Minimum Gain)

THD+N

0.001% (1 kHz, Minimum Gain)

Gain Range

+/- 10 dB

Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Instrument Inputs

Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Dynamic Range

111 dB (A-Weighted, Minimum Gain)

THD+N

0.003% (1 kHz, Minimum Gain)

Gain Range

75 dB

Maximum Input Level

+21 dBu (Unbalanced, Minimum Gain)

Line Outputs

Connection Type

1/4" TRS Female

Main Outputs

Connection Type

1/4" TRS Female

Headphone Outputs

Connection Type

One - 1/4" TRS Female Stereo

Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Impedance Working Range

33 Ohms

Dynamic Range

118 dB (A-Weighted)

THD+N

0.001% (1 kHz)

Maximum Output Level

11 dBu (50 Ohms)

MIDI I/O

Connection Type

5-Pin Female DIN

Power

Voltage

120V

Voltage Requirements

100-240 VAC, 50-60 Hz

Digital Audio

Connectivity

USB-C®

Bit Depth

32-bit

Dynamic Range

124 dB

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Measurements

Height

1.9" (48.3 mm)

Depth

7.5" (191 mm)

Width

8.5" (216 mm)

Weight

2.9 lbs. (1.3 kg)
