Allen & Heath SQ-Rack
$2,999.00
-
Digital Rackmount Mixer with 96kHz Processing, Dante/Waves/MADI/SLink Option Card Slot, and SQ-MixPad, SQ4You, and SQ-Control App Compatibility
2 in stock
Free Shipping
100% Secure Payment Checkout

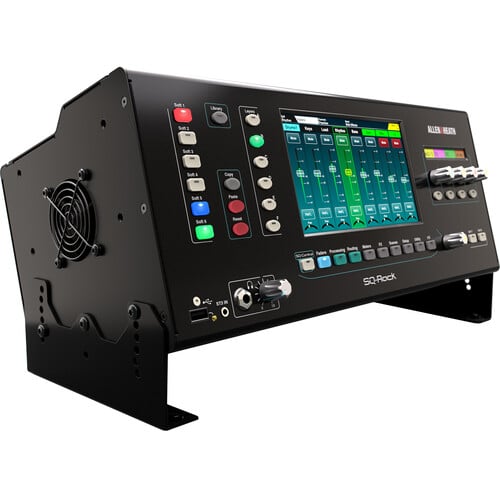

Experience the power of digital mixing in a compact 4 RU enclosure with the Allen & Heath SQ-Rack, a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-Rack features 16 professional-quality microphone preamps, eight stereo FX engines with dedicated return channels, and access to the RackExtra FX library with dozens of emulation of legendary classic reverbs, delays, modulators, and more. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-Rack lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultralow latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles.
Audio and processing:
- 96 kHz XCVI FPGA processing
- 48 input channels
- 12 stereo mixes + LR
- 3 stereo matrix (split to 6 mono)
- 8 stereo FX engines + dedicated stereo returns
- DEEP processing ready

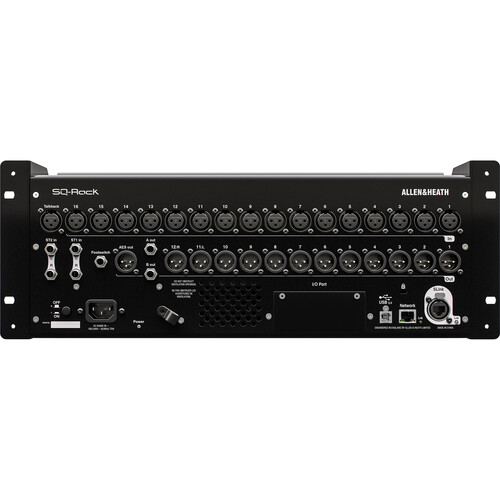

Onboard I/O:
- 16+1 built-in mic preamps
- 3 stereo line inputs
- 12 XLR line outputs
- 2 TRS line outputs
- AES output
Control:
- 7” capacitive touchscreen
- 8 assignable SoftKeys
- 4 assignable soft rotaries
- SQ-MixPad app
- SQ-Control app
- SQ4You app

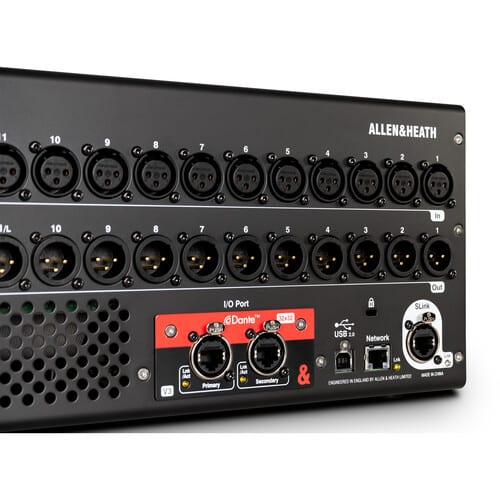

Expandability and integration:
- SLink port for remote audio / expansion
- 64 x 64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
- Recording and streaming:
- SQ-Drive direct recording to USB
- 32 x 32 96 kHz USB interface
Faders
- The SQ-Rack’s faders screen provides instant access to level controls, plus 8 SoftKeys and 4 Soft Rotaries—all assignable with LCD displays—so you get to choose which functions you have at your fingertips.
- The SQ MixPad app for Android, iOS, Windows, and macOS provides access to the SQ-Rack’s mixing functions from anywhere in the venue, with an offline mode allowing preparation of scenes or shows away from the venue.
- For less technical users, the SQ-Control app provides simplified access in-app in addition to a dedicated screen on the SQ-Rack itself. SQ-Control can be configured by an admin user to deliver just the right amount of control for each application or dry hire, whether that’s single fader control of background music from behind the bar or controlling live stream levels in a house of worship.Processing and FX
- Every input has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equalizer with RTA, and Peak/RMS compressor for control and shaping of levels and transients.
- Mixes have both a parametric and 28-band graphic EQ along with compressor as standard, all ready to switch in when required.
